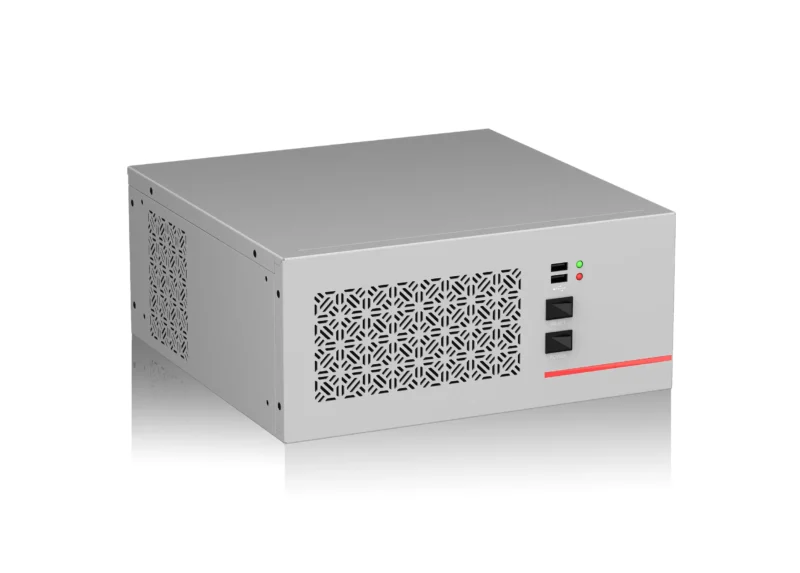

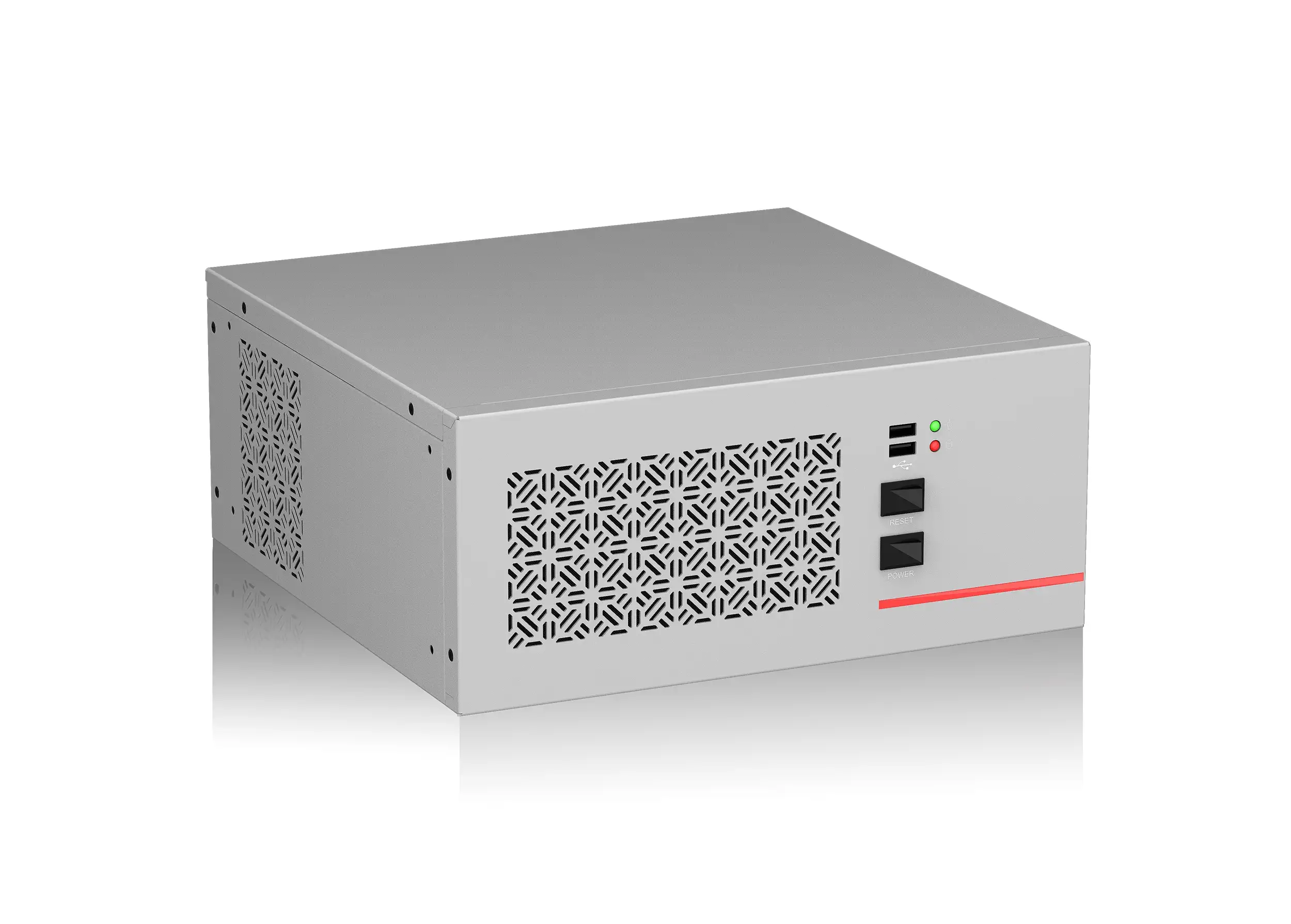

* Flexible installation capabilities, compatible with MATX and ITX motherboards.
* Professional and reasonable cooling air duct design ensures smooth heat dissipation for the processor and hard drive combination.
* Dust-proof design, simple installation method, and easy disassembly and maintenance.
* Rich expansion functions, supporting seven-slot half-height, full-length plug-in expansion.
* Professional EMC design, with strong anti-electromagnetic interference and radiation protection capabilities.
* The red lines added to the window patterns represent the Chinese national style.
Share This Items :
| Product size | 305*300*130mm | |
| Hard Disk | 1-2.5 inch hard disk,1-3.5 inch hard disk | |
| Applicable motherboard | Supports MATX,ITX motherboard | |
| Front interfaces | 2*USB2.0,1* Power Indicator light,1*HDD Indicator light,1*power light, 1*Reset Switch | |
| Materials | Maanshan lron and Steel | |
| Fan | 2-8020 fan | |
| I/0 Expansion | 4 expansion slots | |
| Power | FLEX power supply | |

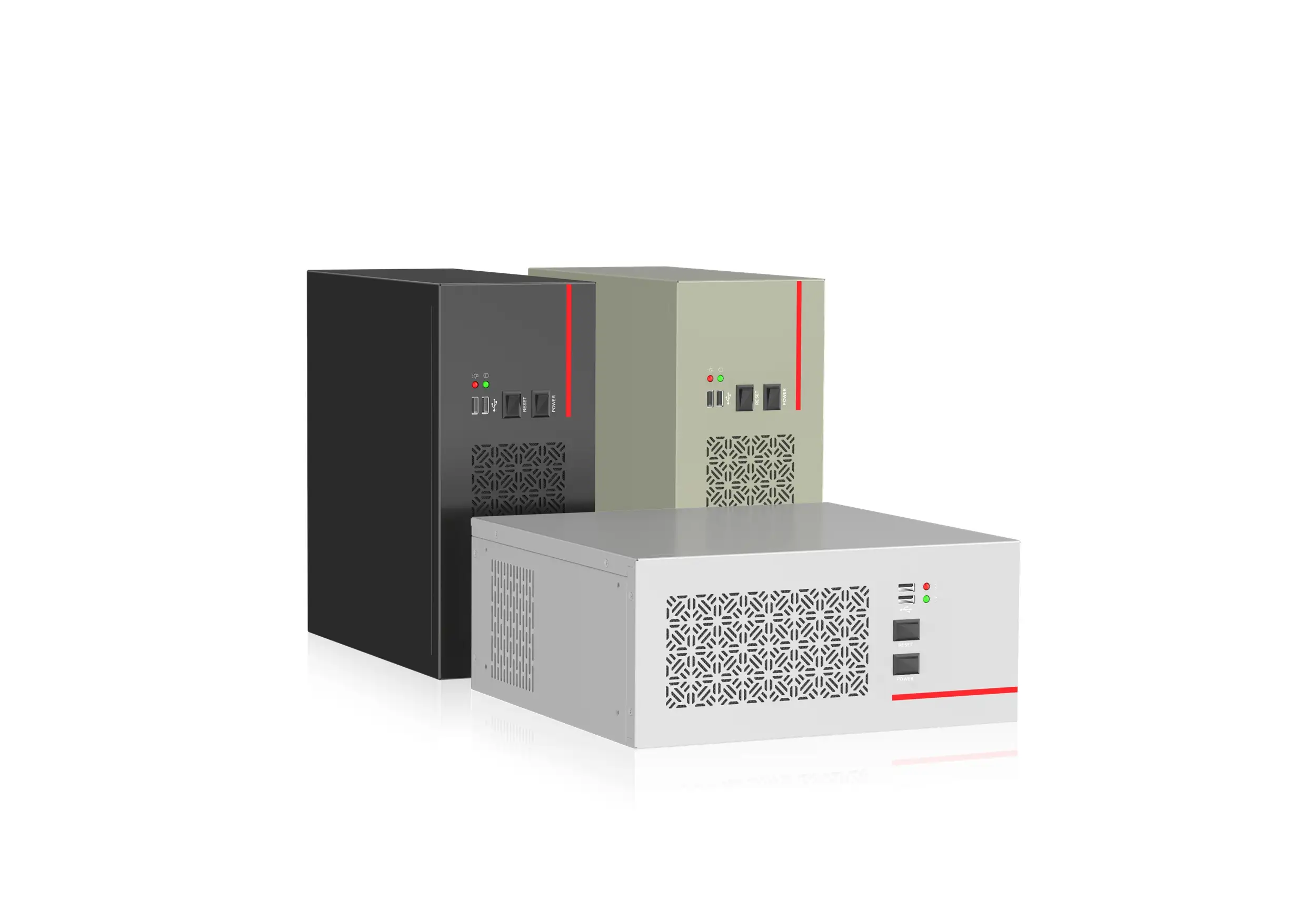

| Color | Black/ Grey / Sliver | |
| Package Size | 416X390X226 MM | |
| Optional Motherboard: (Welcome to contact us for specification of MATX-B75 / MATX-B85) | ||
| Model | Plate Type | Size |
| MATX-B75 | MicroATX | 244x244mm |
| MATX-B85 | MicroATX | 244x244mm |
| MATX-B150 | MicroATX | 244x244mm |
* Motherboard supports Intel 6/7/8/9th Gen Intel Core i3, 15, i7 and Pentium, Celeron CPU.
* The motherboard has 6*USB3.0, 7*USB2.0 (3 sets of 2×5 pins and 1 USB interface on the board).
* One-click hardware restore system.
* The motherboard has 4*DDR4 memory slots, supporting up to 64GB and up to 2666MHZ.
* The motherboard supports VGA+DVI-D dual display output at the same time.
| Model | MATX-B150 |
| Product type | Standard MATX industry mid-board |
| Processor | Support IntelLGA11556/7/8/9rd generation Intel Core i3, 5, i7, and Pentium, Celeron CPU |
| Chipset | Intel*B150 |
| Memory | The motherboard has 4 DDR3 memory slots, supporting up to 64GB 2666MHz |
| Display controller | CPU Integrated display |
| Display interface | Three display outputs VGA+HDM+DP support independent graphics card |
| Storage | 4*standard 7 Pin SATA connectors, 1 mSATA, 1 M.2 |
| Audio | Support MIC-in, Line out |
| Network | Onboard 1210 and I219 Gigabit network cards, 2 standard RJ45 interfaces 10M/100M/1000M adaptive |
| USB | Supports 6*USB3.0 ，7*USB2.0 (3 sets of 2×5 pins and 1 on-board vertical USB interface) |
| PS2 keyboard and mouse | Support PS/2 |
| LPT interface | 1*26 Pin parallel port |
| COM | The default 10 COM, among which COM3-COM4 support RS485 |
| Digital I/O | 8*GPIO, 4 in and 4 out |
| Power supply | ATX power supply |
| Expansion bus | 1*PCle×16, 1*PCle×4, 2*PCI |
| Operating temperature requirements | -10~60℃ |
| Working humidity requirements | 5%~95% no condensation |
| Storage temperature requirements | -40-80℃ |
| Watch Dog | 255 levels of programmable seconds/minutes, supports timeout interrupt or system reset |
| Operating system | Win7(64-bit)/Win10 |
| PCB size (L×W×H) | 244x244mm |
