The panel has an HDMI high-definition interface display output, which can reach up to 4K60Hz display.
* Support Intel Core series (12/13 desktop i3 i5 i7 CPU).
* Support M.2 2230 WIFI interface(Optional onboard WIFI).
* Motherboard has one-key restore function, network wake-up. scheduled startup function, and power-on auto-start function.

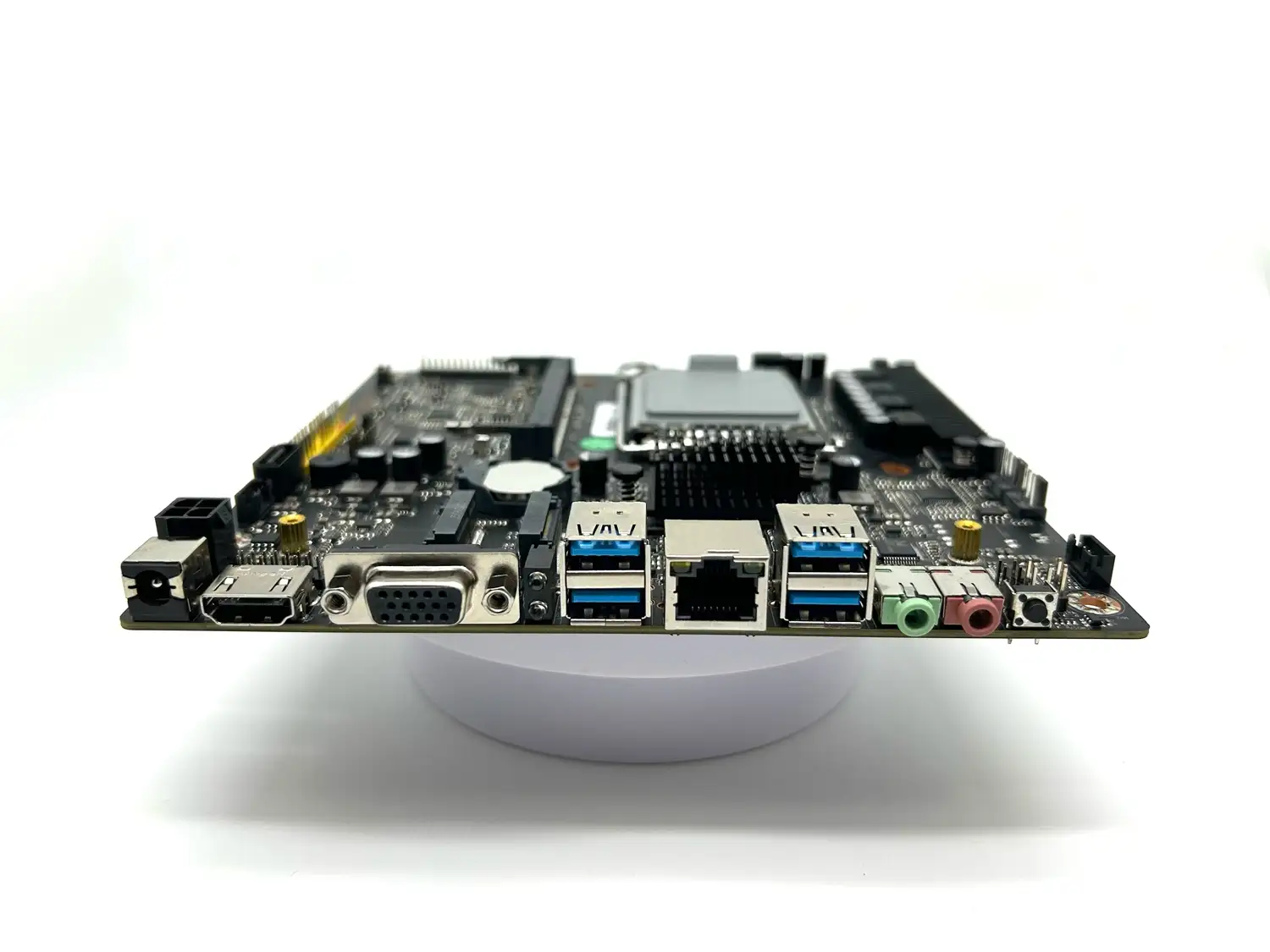

Front HDMI plus VGA display interface.
* 1 standard 7Pin SATA female connector and M.2 2280 solid state drive interface.
* The Motherboard supports 1 COM port and supports RS232 by default.
Share This Items :
| Processor | CPU model number | HJS H610-I I3A12 I3-12100 3.3GHz ~ 4.3GHz ,Onboard 2.4G /5G WIFI+Bluetooth HJS H610-I I5A12 I5-12400 2.5GHz ~ 4.4GHz ,Onboard 2.4G /5G WIFI+Bluetooth HJS H610-I I7A12 I7-12700 2.1GHz ~ 4.8GHz ,Onboard 2.4G /5G WIFI+Bluetooth HJS H610-I I3A13 I3-13100 3.4GHz ~ 4.5GHz ,Onboard 2.4G /5G WIFI+Bluetooth HJS H610-I I5A13 I5-13400 2.5GHz ~ 4.6GHz ,Onboard 2.4G /5G WIFI+Bluetooth HJS H610-I I7A13 I7-13700 2.1GHz ~ 5.1GHz ,Onboard 2.4G /5G WIFI+Bluetooth |
||
| Model | HJS H610-I | |||
| Chipset | Intel H610 | |||
| Type | All-in-one/mini PC industrial control motherboard | |||
| Processor | Support Intel Core series (12th/13th generation desktop I3 I5 I7 CPU) | |||
| Memory | Single channel SODIMM DDR4 supports up to 32GB | |||
| Storage | 1*standard 7Pin SATA female connector and M.2 2280 solid state drive interface | |||
| Display Interface | 1*HDMI female Type-A 3840*2160@60Hz | |||
| 1*HDMI pin interface (2×8) supports 3840*2160@60Hz | ||||
| 1*standard female VGA 1920*1080@60Hz | ||||
| 1*EDP 2*15Pin2.0mm Double row pin 1920*1080@60Hz | ||||
| 1*LVDS 2*15Pin2.0mm Double row pin 1920*1080@60Hz | ||||
| USB | 4*USB3.0 female Type-A | |||
| 4 sets of USB2.0 2*5Pin2.54mm double row pins | ||||
| Network | Onboard RTL8111 Gigabit network card, a standard RJ45 interface 10M/100M/1000M adaptive | |||
| M.2 2230WIFI interface, supports 2.4G/5G dual-band WIFI | ||||
| Audio | Onboard RTL ALC897 HD sound card, audio output (green) Mic input (pink). Front panel pin 1 pc | |||
| 2*5Pin 2.54mm double row pin, 8 ohm 5W speaker output 1 pc 4Pin 2.0mm white socket | ||||
| COM Ports | 1*2*5Pin 2.54mm double row pin (RS232) | |||
| Extensions | M.2 2230 Wifi interface .SATA hard disk interface | |||
| Fan | 2*4-pin black sockets (1 IO speed control, 1 fixed speed) | |||
| Power supply requirements | 3.5mm DC-IN socket 12V/120W adapter input /ATX 4Pin power socket 12V@10A power input |
|||
| Button | 1*GHOST button | |||
| Size | 170mmX170mm | |||
