The Panel has an HDMI high-definition interface display output, up to 4K30Hz display
* Support Intel Core series (10th/11th generation desktop CPU).
* Support M.2 2230 WIFI interface (optional onboard WIFI).
* 1 standard 7Pin SATA female socket and M.22280 solid state drive interface.
* The motherboard supports 1 COM port and support RS232 by default.

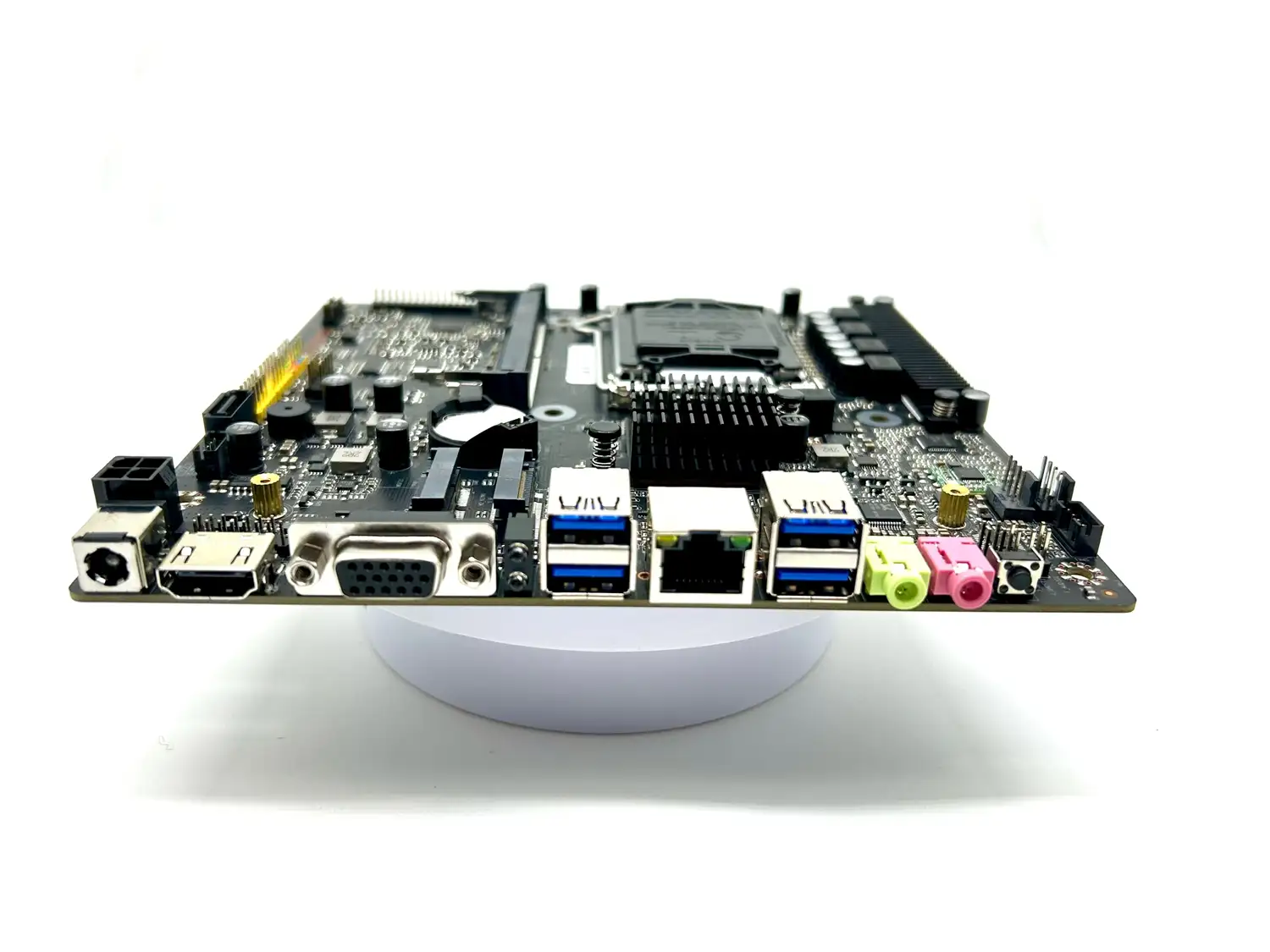

Front HDMI + VGA display interface
* Motherboard with one-key restore function, network wake-up.
scheduled startup function, power-on auto-start function.
* Support gravity sensing function.
Share This Items :
| Processor | CPU model number | HJS H510-I13-A10 I3-10100 3.6GHz~4.3GHz ,Onboard 2.4G/5G WIFI+Bluetooth HJS H510-I15-A10 I5-10400 2.9GHz~4.3GHz ,Onboard 2.4G/5G WIFI+Bluetooth HJS H510-I17-A10 I7-10700 2.9GHz~4.8GHz ,Onboard 2.4G/5G WIFI+Bluetooth HJS H510-I15-A11 I5-11400 2.6GHz~4.8GHz ,Onboard 2.4G/5G WIFI+Bluetooth HJS H510-I17-A11 I7-11700 2.5GHz~4.9GHz ,Onboard 2.4G/5G WIFI+Bluetooth |
||

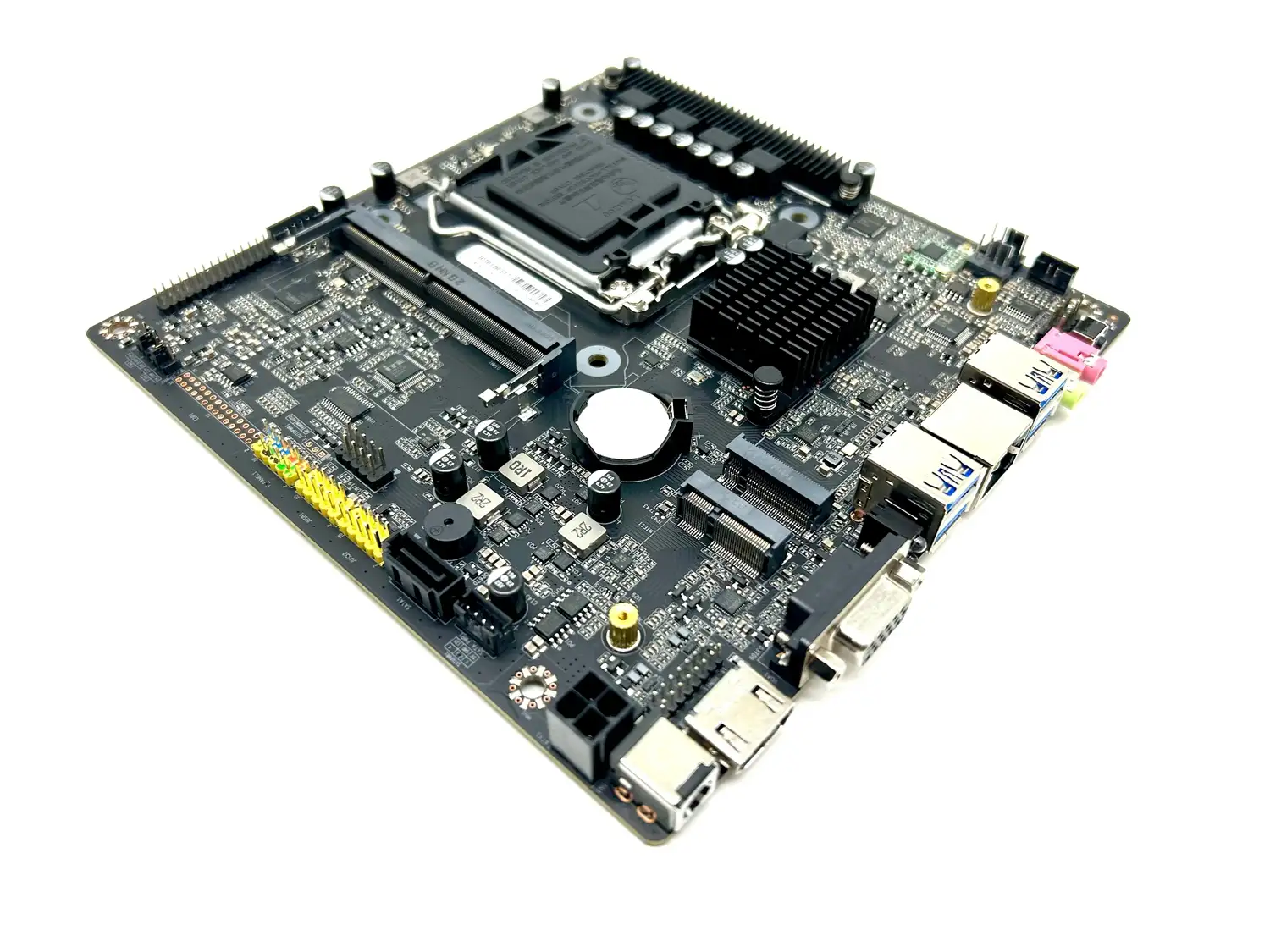

| Model | HJS H510-I | |||
| Chipset | Intel H510 | |||
| Type | All-in-one/ mini PC industrial control motherboard | |||
| Processor | Support Intel Core series (11th/11th generation desktop I3 I5 I7 CPU) | |||
| Memory | Single channel SODIMM DDR4 supports up to 32GB | |||
| Storage | 1*Standard 7Pin SATA female connector and M.2 2280 solid state drive interface | |||
| Display Interface | 1*HDMI female Type A 3840*2160@60Hz (11th generation CPU) | |||
| 1*HDMI pin interface (2×8) supports 3840*2160@60Hz (11th generation CPU) | ||||
| 1* female standard VGA 1920*1080@60Hz | ||||
| 1*EDP 2*15Pin2.0mm double row pin 1920*1080@60Hz | ||||
| 1*LVDS 2*15Pin2.0mm double row pin 1920*1080@60Hz | ||||
| USB | 4*USB3.0 female Type-A | |||
| 4 sets of USB2.0 2*5Pin 2.54mm double-row pins | ||||
| Network | On board RTL8111 Gigabit network card, one standard RJ45 interface 10M/100M/1000M adaptive | |||
| M.2 2230 WIFI interface, supports 2.4G/5G dual-band WIFI, onboard 2.4G/5G WiFi+Bluetooth | ||||
| Audio | Onboard RTL ALC897 high-definition sound card, audio output (green) and Mic input (pink). 1 front panel pin | |||
| 2*5Pin 2.54mm double-row pin, 8 ohm 5W speaker output 1 4Pin 2.0mm white socket | ||||
| COM Ports | 1*2*5Pin 2.54mm double row pin (RS232) | |||
| Extensions | M.2 2230 Wifi interface.SATA hard disk interface | |||
| Fan | 2*4-pin black sockets (1*IO speed control, 1* fixed speed) | |||
| Power supply requirements | 3.5mm DC-IN socket 12V/120W~19V/120W adapter input/ATX4Pin power socket 12V@10A power supply input | |||
| Button | 1*GHOST button | |||
| Size | 170mmX170mm | |||
